What is sheet metal forming?

Sheet metal forming is a versatile manufacturing process that can create various objects and parts out of sheet metal. Sheet metal is a thin sheet of metal that can be bent and shaped into many different forms.

Common sheet metal forming tools include hammers, anvils, presses, dies, and moulds. These tools are used to shape the sheet metal into the desired shape. Sheet metal forming can be used to create objects such as car parts, aircraft parts, and medical devices.

Types of Sheet Metal Forming:

Some of the most common types of sheet metal forming include:

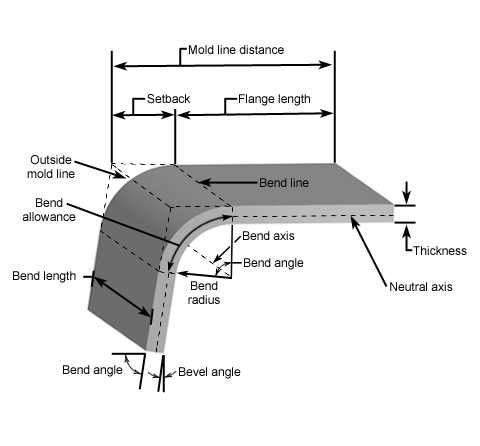

Bending: Bending is a sheet metal forming process in which force is applied to a piece of sheet metal, causing it to bend at an angle. There are several ways to bend sheet metal, including using manual or powered tools. In manual bending, a sheet metal worker uses a hammer and anvil or a sheet metal brake to bend the metal. Powered bending tools, such as press brakes and roll formers, use hydraulics or motors to apply the force needed to bend the sheet metal. The type of tool used will depend on the thickness and hardness of the sheet metal being formed.

Drawing: Drawing is a sheet metal forming process in which the metal is stretched and pulled to increase its length. This process is typically performed using a variety of tools, including dies, rollers, and presses. In most cases, drawing is used to create sheet metal parts with complex shapes or intricate details. However, it can also be used to produce sheet metal with a smooth, even surface finish. When performed correctly, drawing can produce parts that are stronger and more resistant to wear than parts produced using other forming processes.

Ironing: Ironing is a sheet metal forming process that uses heat and pressure to flatten the metal. This process is typically used to create parts with smooth, flat surfaces. Ironing can be performed using a variety of tools, including anvils, hammers, and presses.

Extrusion: Extrusion is a sheet metal forming process that uses a die to create parts with long, thin shapes. The die is a negative image of the desired shape, and the metal is forced through it to create the desired shape. Extrusion can be performed using a variety of tools, including presses and rollers.

Stamping: Stamping is a sheet metal forming process in which a sheet of metal is punched, dimpled, or embossed to create a desired shape or pattern. This can be done with a variety of tools, including hammers, presses, dies, and moulds. In addition, stamping can be used to create complex shapes and patterns that would be difficult to achieve with other metal forming processes.

Laser Cutting: Laser cutting is a sheet metal forming process that uses a laser to cut the metal. This process is typically used to create parts with complex shapes or intricate details. Laser cutting can be performed using a variety of tools, including press brakes and roll formers.

Hydroforming: Hydroforming is a type of sheet metal forming process that uses pressurised water to shape metal components. The hydroforming process can be used to create complex shapes with a high degree of accuracy, and it can also be used to strengthen metal parts by increasing their density. Hydroforming is often used to create car parts such as exhaust systems and fuel tanks, but it can also be used to create a variety of other components such as pipe fittings and medical implants. The hydroforming process is versatile and efficient, making it an attractive option for a wide range of applications.

Advantages of Sheet Metal Forming:

• Sheet metal forming is a versatile manufacturing process that can create various objects and parts out of sheet metal.

• Sheet metal forming can be used to create objects with complex shapes.

• Sheet metal forming is a relatively fast manufacturing process.

• Sheet metal forming can be done by hand or using machines.

Disadvantages of Sheet Metal Forming:

• Sheet metal forming can be a dangerous process if not done properly.

• Sheet metal forming can be a noisy process.

• Sheet metal forming can produce hazardous waste.

• Sheet metal forming can be a dirty process.

Summary

Sheet metal forming is a manufacturing process that can be used to create various parts and products. It has many advantages, including the ability to create complex shapes, the relatively fast speed of production, and the fact that it can be done by hand or using machines. However, sheet metal forming also has some disadvantages, such as the potential for danger, noise, and hazardous waste. Despite these disadvantages, sheet metal forming is still a popular manufacturing process due to its many advantages.

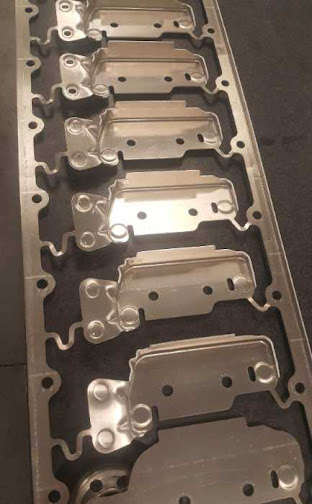

What is Sheet metal stamping?

Sheet metal stamping is a process that uses specialised tools and equipment to cut, shape, and form sheet metal into specific designs or patterns. The process can also be performed on a variety of metals, including aluminium, brass, copper, stainless steel, and even titanium.

Stampings can be simple or complex, depending on the design of the die. Simple stampings may only require one die, while complex stampings may require multiple dies. The dies can also be designed to create multiple stamped products at once, which is known as gang stamping.

Sheet metal stamping is an efficient way to mass-produce parts for a wide variety of industries, from automotive to electronics.

Types of Metal Stamping

There are three major types of metal stamping techniques: progressive, four-slide, and deep draw are:-

• Progressive metal stamping: Progressive metal stamping is a continuous process that involves feeding a strip or coil of metal into a stamping press, where it is formed into the desired shape by a series of dies. The metal is then cut to length and ejected from the press. This type of stamping is often used for large production runs as it is very efficient.

• Four-slide metal stamping: Four-slide metal stamping is a process that uses four slides to create a variety of shapes from sheet metal. The four slides are arranged in a square, with two opposing slides being connected to the stamping press. The other two slides are connected and are used to move the sheet metal into position. This type of stamping is often used for small production runs or for creating complex shapes.

• Deep-draw metal stamping: Deep-draw metal stamping is a process that involves drawing the metal through a die to create the desired shape. This type of stamping is often used for creating cylindrical shapes, such as tubes or pipes. It can also be used to create hollow objects, such as cups or bowls.

Advantages of Metal Stamping

There are many advantages to using metal stamping, including:

• It is a very efficient process that can be used to create large production runs.

• It is a versatile process that can be used on a variety of metals.

• It is a precise process that can be used to create complex shapes.

• It is a cost-effective process that can save money on manufacturing costs.

Disadvantages of Metal Stamping

There are a few disadvantages to using metal stamping, including:

• It is a complex process that requires specialized equipment and training.

• It can be dangerous if not done properly, as there is a risk of injury from the stamping press.

• It can be noisy, as the stamping press creates a lot of noise when it is in operation.

Applications of Sheet Metal Stamping:

Sheet metal stamping is used in a variety of industries, including automotive, aerospace, electrical, and construction. It is often used to create metal parts and components for these industries. Some common applications of sheet metal stamping include:

• Automotive: Sheet metal stamping is used extensively in the automotive industry. It is used to create a variety of parts and components, such as engine blocks, transmission housing, exhaust systems, and body panels.

• Aerospace: Sheet metal stamping is also used in the aerospace industry. It is often used to create aircraft parts and components, such as fuselage sections, wings, empennage (tail), and landing gear.

• Electrical: Sheet metal stamping is used in the electrical industry to create a variety of parts and components, such as electrical enclosures, switchgear, and busbars.

• Construction: Sheet metal stamping is also used in the construction industry. It is often used to create metal parts and components for buildings, such as structural framing, curtain walls, and roofing.

Common Sheet Metal Stamping Process:

Some of the most common sheet metal stamping processes include:

• Blanking: Blanking is a process that involves cutting a piece of sheet metal into the desired shape. It is often used to create parts with sharp edges, such as washers or gaskets.

• Punching: Punching is a process that involves using a punch to make a hole in sheet metal. It is often used to create holes for fasteners, such as bolts or screws.

• Bending: Bending is a process that involves using a die to bend sheet metal into the desired shape. It is often used to create parts with complex shapes, such as brackets or frames.

• Drawing: Drawing is a process that involves using a die to draw sheet metal through a die to create the desired shape. It is often used to create parts with complex shapes, such as tubes or pipes.

Common Sheet Metal Stamping Materials:

There are a variety of materials that can be used for sheet metal stamping. Some of the most common materials include:

Carbon steel: Carbon steel is the most common type of steel used in sheet metal stamping. It is an inexpensive material that is easy to work with. However, it is not as strong or durable as other types of steel.

Stainless steel: Stainless steel is a type of steel that contains chromium. It is more expensive than carbon steel, but it is more resistant to corrosion and is easier to work with.

Aluminium: Aluminium is a lightweight metal that is easy to work with. It is often used in the automotive and aerospace industries. However, it is not as strong as other metals.

Titanium: Titanium is a strong metal that is resistant to corrosion. It is often used in the aerospace and medical industries. However, it is more expensive than other metals.

Here is the Best Steel Company in USA Click Here

Summary

Metal stamping is a process that involves using a stamping press to create parts and components from sheet metal. It is a complex process that requires specialised equipment and training. There are a few disadvantages to using metal stamping, including the risk of injury from the stamping press and the noise it creates. However, there are many advantages, such as the ability to create parts with complex shapes and the variety of materials that can be used. Metal stamping is used extensively in industries such as automotive, aerospace, electrical, and construction. Some common applications of sheet metal stamping include creating engine blocks and body panels for automobiles, aircraft parts and components, electrical enclosures, and structural framing for buildings.



What is a metal fabrication process?

A metal fabrication process is a process that involves the shaping and assembling of metal parts to create a final product. There are many different types of metal fabrication processes, each with its own set of capabilities and limitations. This can involve cutting, bending, welding, and other forms of manipulation. Metal fabrication processes are used in a variety of industries, including automotive, aerospace, and construction. Each industry has its own set of requirements for the products they need. As a result, each industry has developed its own set of metal fabrication processes that are best suited for its needs.

Types of Metal fabrication

There are many different types of metal fabrication processes, each with its advantages and disadvantages. Some of the most common processes include:

• Cutting: This is one of the most fundamental steps in any metal fabrication process. Cutting can be done in several ways, including sawing, drilling, milling, grinding, or even waterjet cutting. The type of cutting method used will depend on the material being cut, the desired shape, and the tolerance required.

• Bending: This process is used to create shapes by changing the shape of the metal. Bending can be done using a variety of methods, including press brakes, rollers, or even manually. The type of bending method used will depend on the material being bent, the desired shape, and the tolerance required.

• Welding: This process is used to join two or more pieces of metal together. Welding can be done using a variety of methods, including arc welding, gas welding, and resistance welding. The type of welding method used will depend on the material being welded, the desired joint strength, and the tolerance required.

• Forming: This process is used to change the shape of the metal without actually cutting or bending it. Forming can be done using a variety of methods, including stamping, extrusion, casting, and forging. The type of forming method used will depend on the material being formed, the desired shape, and the tolerance required.

• Folding:  This process is used to create shapes by folding the metal. Folding can be done using a variety of methods, including press brakes, rollers, or even manually. The type of folding method used will depend on the material being folded, the desired shape, and the tolerance required.

• Forging:  This process is used to change the shape of the metal by using high temperatures and pressures. Forging can be done using a variety of methods, including hammer forging, die forging, and roll forging. The type of forging method used will depend on the material being forged, the desired shape, and the tolerance required.

• Extrusion: This process is used to create shapes by forcing the metal through a die. Extrusion can be done using a variety of methods, including hot extrusion, cold extrusion, and hydroforming. The type of extrusion method used will depend on the material being extruded, the desired shape, and the tolerance required.

• Casting: This process is used to create shapes by pouring molten metal into a mould. Casting can be done using a variety of methods, including sand casting, die casting, and investment casting. The type of casting method used will depend on the material being cast, the desired shape, and the tolerance required.

Advantages of Metal Fabrication

There are many advantages to using metal fabrication over other methods of manufacturing. Some of the most notable advantages include:

• Versatility: Metal fabrication is a very versatile manufacturing process. It can be used to create a wide variety of products, from small components to large structures.

• Strength: Metal fabrication is capable of creating extremely strong and durable products. This is because metal is a very strong material.

• Cost: Metal fabrication is a relatively cost-effective manufacturing process. When compared to other methods, such as machining or injection moulding, metal fabrication is often more affordable.

• Accuracy: Metal fabrication processes are capable of achieving high levels of accuracy. This is because metals are easy to work with and can be shaped into very precise designs.

Disadvantages of Metal Fabrication

There are some disadvantages to using metal fabrication as well. Some of the most notable disadvantages include:

• Difficulty: Metal fabrication can be a very difficult manufacturing process. It requires a high level of skill and experience to produce quality products.

• Time: Metal fabrication can be a very time-consuming manufacturing process. This is because it often takes longer to fabricate a product than it does to create it using other methods.

• Cost: Metal fabrication can be a relatively expensive manufacturing process. This is because it often requires specialised equipment and skilled labour.

Applications of Metal Fabrication

Metal fabrication is used in a wide variety of applications. Some of the most common applications include:

• Automotive: Metal fabrication is widely used in the automotive industry. It is often used to create car frames, body panels, and engine parts.
  Construction: Metal fabrication is widely used in construction. It is often used to create structural components, such as beams and columns.
  Machinery: Metal fabrication is widely used in machinery. It is often used to create machine parts, such as shafts and gears.
  Medical: Metal fabrication is also used in the medical industry. It is often used to create implants and prosthetics.

Conclusion

This book provides a basic knowledge of metal fabrication, including the many types and their benefits and drawbacks. Overall, metal fabrication is a great option for those who are looking for a versatile, strong, and accurate manufacturing process. While it can be expensive and time-consuming, the result is often worth the effort.
